Project V2 Vacuum Press Information
Type: Adjustable Auto-Cycling
Vacuum: Air Powered Venturi
Page: 5 of 9
Venturi System

Assemble the Venturi
The vacuum generator (known as a venturi or venturi pump) operates on compressed air. See this chart for the air compressor requirements.

The vacuum press will be cycling on and off during operation. To do this, an electro-mechanical valve is needed to open and close the airflow from your air compressor. I suggest the use of Mac Valve brand pneumatics. They are very reliable and energy efficient.

You can find these valves at your local pneumatics dealer or you can help to keep this article ad-free by purchasing the Mac valve at VeneerSupplies.com. Here are the considerations for selecting the correct valve.


  • 1/4" NPT fittings
  • 120v AC operation
  • 3-Way valve orientation
  • 4.8 CFM minimum air flow

It’s time to build the vacuum generating unit.

Parts used in this section: Tools Required:

Thread sealing tape
Mac valve
Breather fitting
Quick connector

Brass "close" fitting
Venturi
1/8" NPT-Barb fitting

Wrench or pliers

  1. Apply thread sealing tape to all of the male sides of the fittings for this assembly.
  2. Attach the breather fitting to port #3 on the Mac valve. This fitting allows the venturi to unload any back pressure after each vacuum cycle and gives the overall assembly a professional look.
  3. Attach the compressed air quick connector to port #1.
  4. Attach the brass "close" fitting to port #2 on the Mac valve.
  5. Attach the venturi to the close fitting.
  6. Attach the 1/8" NPT to 1/4" brass barb fitting to the port marked “vacuum” on the venturi.

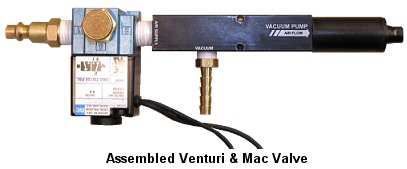

The final assembly should appear as shown in the picture below.

Completed Venturi Assembly

These instructions are provided for assembling the components available from VeneerSupplies.com. If you are using different components the exact connections may vary. If so, your best bet may be to take the venturi and the valve to the hardware store and play around with the fittings until you find a combination that works.
